Decade Resistance Box

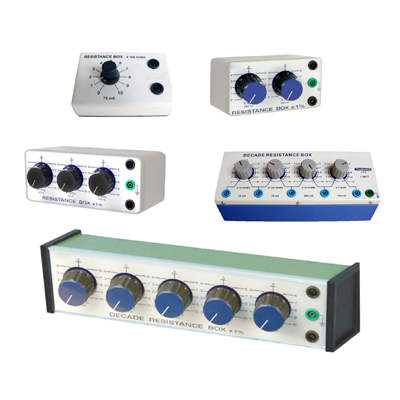

Decade Resistance Box : MPH-EE-24
Comprises circular dials mounted underneath a metal cover plate, inside sturdy aluminium extrusion case. Each dial has 10 resistances, with a knob at the top which rotates with positive click stop to select the desired value as indicated alongside index mark on the knob. Provided with a pair of 4 mm sockets for connecting the resistances across a circuit and a yellow socket for earthing. Multiple dials are connected in series to add to the total resistances of each dial. Accuracy ±1%.
- Single Decade 0-10Ω= 10 ohms
- Double Decade 0-100Ω, 0-10Ω= 110Ω
- Three Decade 0-1000Ω, 0-100Ω, 0-10Ω= 11.1KΩ
- Four Decade 0-10KΩ, 0-1000Ω, 0-100Ω, 0-10Ω= 111.11
- Five Decade 0-100KΩ, 0-1000Ω, 0-100Ω, 0-10Ω, 0-10KΩ= 111.11KΩ
*Note: image shown above is for illustration purpose only; Actual image may vary due to specification, Design, Technology and R&D.*
