IMPULSE TURBINE

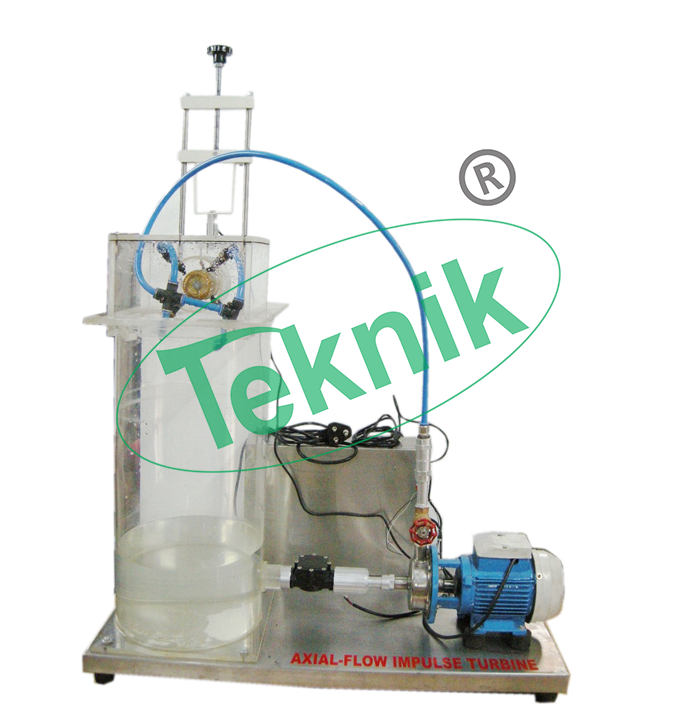

Impulse Turbine: MTFM-108
The small-scale Impulse Turbine unit, which is designed to be used in conjunction with the service unit. An impulse turbine uses the momentum transferred from the impact of a jet of water onto the turbine blades to generate power.
The consists of an inlet manifold which supplies water to four jets which are equally spaced around the turbine runner.
Each of the jets can be individually controlled using ball valves. The runner itself is mounted on a horizontal shaft with a clear acrylic splash guard to enable maximum visibility of the workings. The unit incorporates a pressure sensor to measure the inlet condition of the water. This pressure can be accurately controlled using the software supplied with the service unit
TECHNICAL SPECIFICATIONS:
- Maximum power : 35 W
- Maximum speed : 7,000 rpm
- Maximum torque : 0.15 N m
- Volume : 0.20 m3
- Gross weight : 20 kg
** Note: The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK ” keeps the right to modify the content in the product without prior notice.
