UNDERSTANDING SMPS

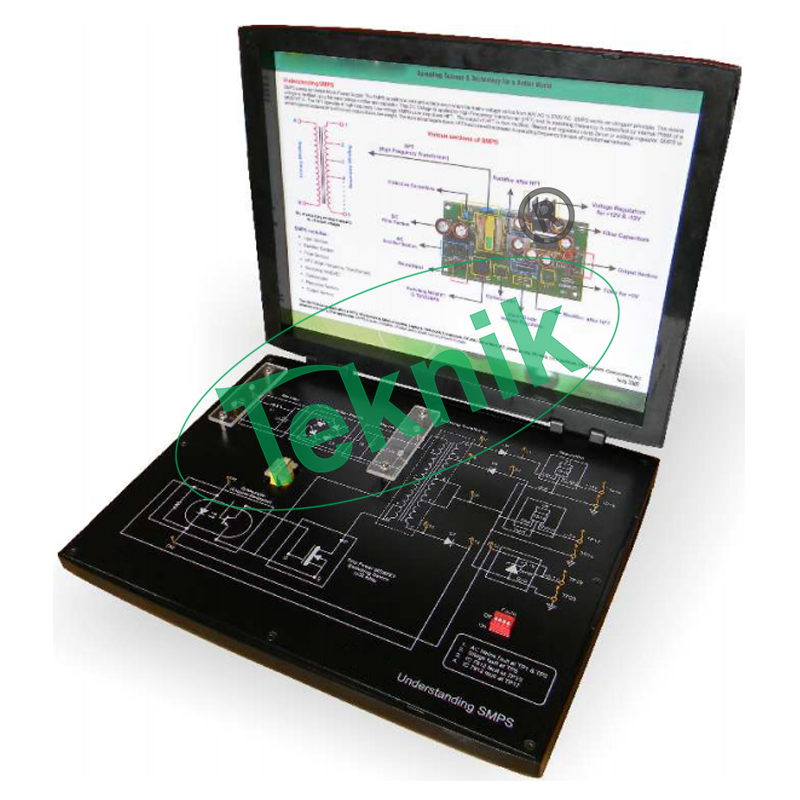

Understanding SMPS: MTEV-16
Understanding SMPS has been designed specifically for the study of Switch Mode Power Supply. SMPS consists of a rectifier section, filter section, switching section and regulator section. Each section is explained separately and the internal structure of different blocks is also described. Switching transformer and chopper controller circuit are the main parts of SMPS. Switching Transformer works at high frequency, so it is also called as HFT i.e., High Frequency Transformer and the chopper controller is simply DC to DC controller. It gives constant output even when the AC main is varied from 80V to 270V. Students can vary Voltage by using Variac. Understanding SMPS is an ideal platform to enhance education, vocational training, skills & development among our young minds.
FEATURES:-
- Physical representation of Switching Transformer
- Various Test Points are provided to observe output
- Diagrammatical representation of each block
- Fault identification switches are also provided
- On-board protective shield to prevent shock
- Designed by considering all safety standards
TECHNICAL SPECIFICATIONS:-
- Input 80 to 230V AC 10%,50/60hz
- Output +12V DC regulated,-12v DC regulated,+5v DC regulated
- Switching transformer
- Input 320V DC switching at 132khz
- Output 30V AC
- Fuse 500mA
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK “keeps the right to modify the content in the product without prior notice.**
