EXPERIMENTATION WITH UPS

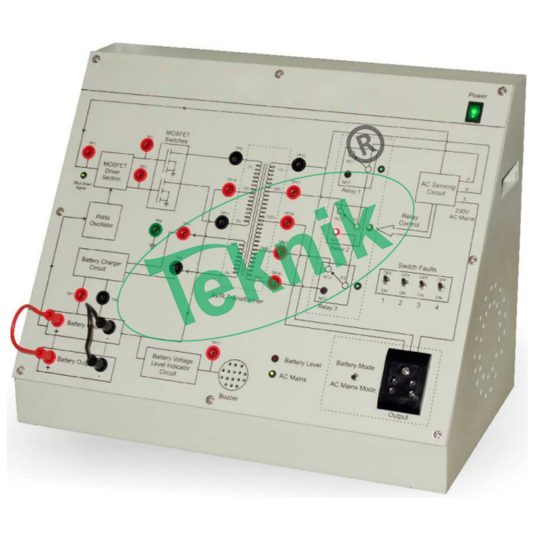

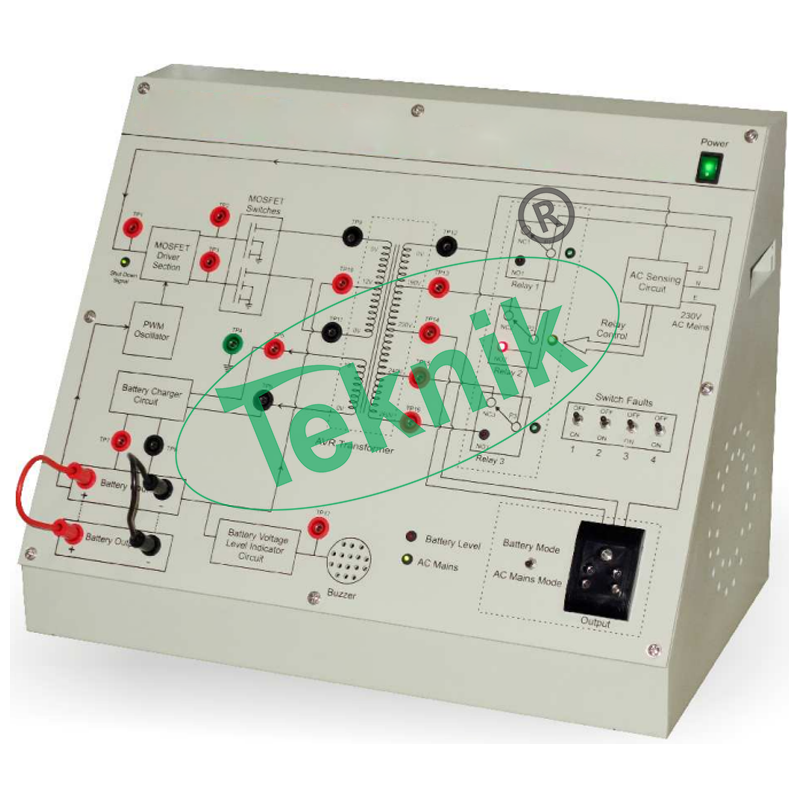

Experimentation with UPS: MTEV-19
Experimentation with UPS is a very versatile training system, has been designed to explain a very interesting and frequently used switching based power supply-The UPS (Uninterrupted Power Supply). When electrical utility power fails or drops to an unacceptable level, UPS are key in saving and protecting valuable computer data. UPS equipment provides power conditioning, power regulation and, in case of power outages, provides the crucial backup power needed for an orderly shutdown of computer processes and files. UPS are also used for emergency power supplies for Hospitals, data centers, municipalities, industrial and commercial centers to supply power in case of power failure from main supply authority.
FEATURES:-
- In depth explanation of PWM switching technology, which is one of the most important feature of UPS
- A Low cost product demonstrating all basic concept of UPS
- Various test point are provided so that one can easily measure the voltages of different sections
- Designed considering all safety standards
TECHNICAL SPECIFICATIONS:-
- Input Voltage : 190 to 260V AC 10%, 50Hz(Single Phase)
- Output Voltage : 230V AC, 10%
- Transformer Input : 12-0-12V AC
- Outputs : 0, 190, 220, 240, 260V AC18 – 0V AC for battery charging
- Battery Rating : 12V DC / 7.5 AH
- Type : Rechargeable Battery
- Technology : MOSFET-PWM
- Output Power Capacity : 500VA
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK “keeps the right to modify the content in the product without prior notice.**
