SINGLE PHASE BRIDGE CONVERTER DRIVE

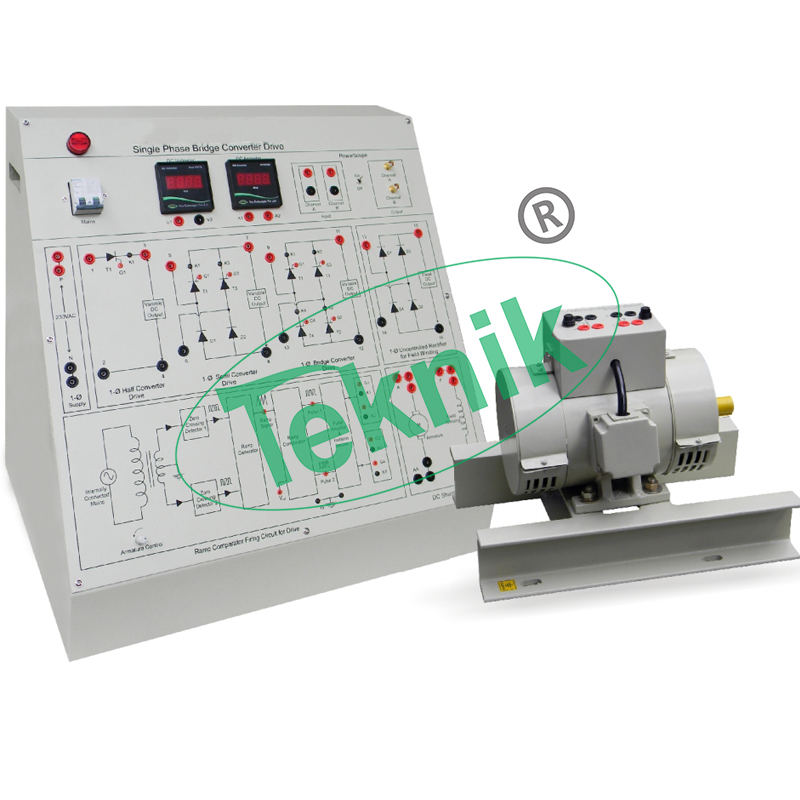

Single Phase Bridge Converter Drive: MTEE-25
Single Phase Bridge Converter Drive is an Elite Training System for Power Electronic Lab to demonstrate the operational functioning of Single Phase Bridge Converter. It includes experiment such as speed control of DC Motor by using full wave SCR configuration.
It helps students to know how to generate firing pulses for single phase converter using ramp comparator is equipped with SCR firing control circuit that deals with triggering, modulation and instrumentation which derives the operating characteristics and capabilities of Converter.
It incorporates all the necessary test points in order to explain the gate circuit by analyzing gate waveforms at different blocks through inbuilt Power Scope. Separate terminals of armature and field winding are provided to operate the machine in either of the excitation mode.
FEATURES:-
- Power Scope for isolation measurement
- Provided with DC Shunt Motor
- High quality meters
- Single Phase low voltage Supply for gate circuit
- Single Phase Firing Circuit provided with pulse isolation
- Test terminals provided to analyze the waveforms
- Designed by considering all the safety precautions
- Diagrammatic representation of circuits
TECHNICAL SPECIFICATIONS:-
- Mains Supply : 230V ±10%, 50Hz
- Type : DC Shunt Motor
- Rating : 0.5HP
- RPM : 1500
- Power Scope : 1500Vmax
- SCR Rating : 600V/16A
- Diode Rating : 6A10, 1000V/6A
- Firing Angle Control : 30° to 180°
- Digital Meter
- DC Voltmeter : 300V
- DC Ammeter : 5A
- Single Phase : 2A
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK“ keeps the right to modify the content in the product without prior notice.
