T and π NETWORK TRAINER
T and π Network Trainer: MTBE-30

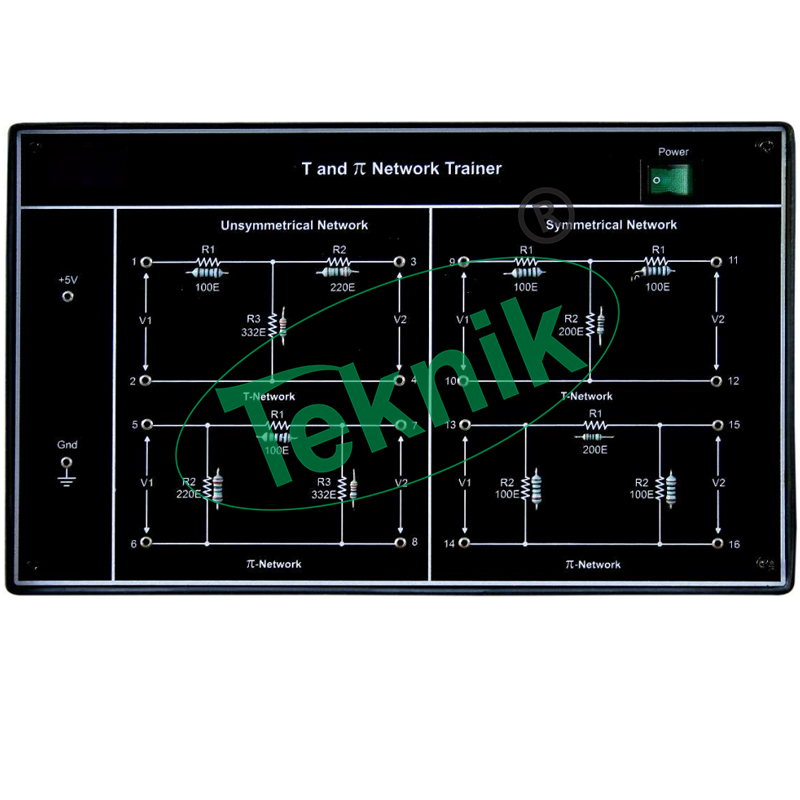

T and π Network Trainer has been exclusively and attractively designed to demonstrate the significance of image and characteristic impedance of T and π network. It can be used as a stand-alone unit with inbuilt DC power supply. Various scope of learning makes the subject understanding complete. This trainer includes not only the experimental calculation of image and characteristic impedance but also verifies it by comparing the theoretical values under T and π networks in a sequential manner. With this, students can learn about importance of Symmetrical and Unsymmetrical networks.
FEATURES:-
- Exclusive and compact design
- Simple representation of T and π Network
- Diagrammatic representation of the circuits
- Inbuilt +5V DC power supply
- E-Manual
SCOPE OF LEARNING:-
- Study and verification of Image Impedance of Unsymmetrical T-Network
- Study and verification of Image Impedance of Unsymmetrical π-Network
- Study and verification of Characteristic Impedance of Symmetrical T-Network
- Study and verification of Characteristic Impedance of Symmetrical π-Network
TECHNICAL SPECIFICATIONS:-
- Mains Supply : 230 V ±10%, 50 Hz
- DC Power Supply : 5 V, 150 mA
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
