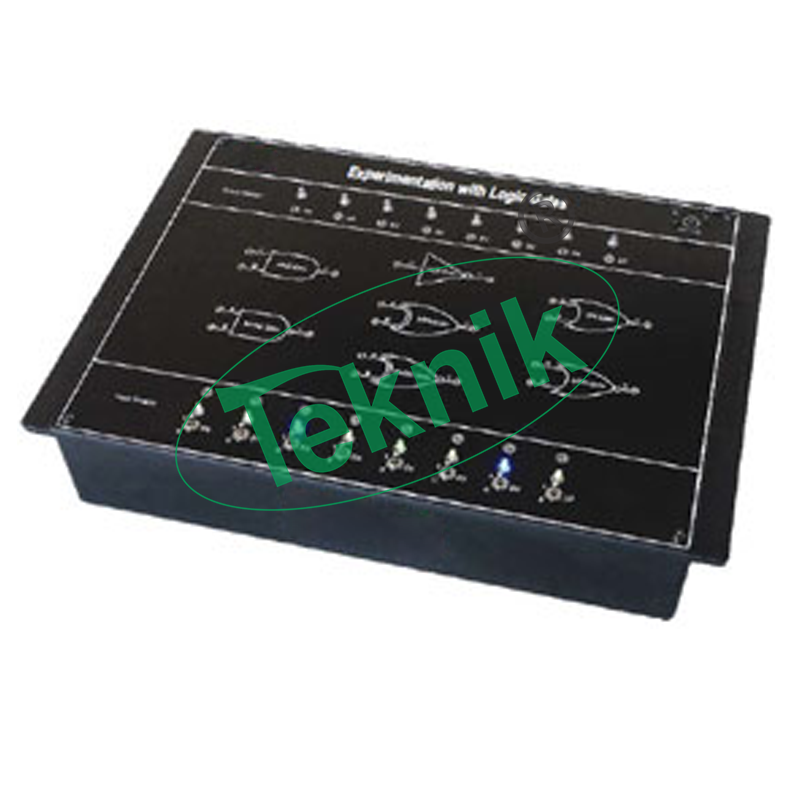

Experimentation With Logic Gates: MTBE-12

Experiment with logic gates is an elite training system for the digital laboratories. It is useful in understanding the basic concepts and functioning of logic gates and their truth tables. Experiment with logic gates describes the AND, OR, NOT, NAND, NOR, XOR and XNOR gates in a very easy way. The training system is designed in such a way that for performing any experiment students have to connect the links by patch cords, so it is very helpful for students to learn the inputs and outputs of different logic gates. Attractive input and output sections are provided on trainer in such a manner so that multiple experiments can be performed simultaneously.

FEATURES:-

On board test points to observe signals
On board Logic diagram
Flexibility of making circuit connections
Light weight & compact
Exclusive and compact design
Straight forward representation of all logic gates
+5V SMPS Adaptor provided with the trainer for power
supply
Designed by considering all the safety standards
Low cost product including illustration of all logic gates

Category: Basic Electronics

Description
Product Enquiry

Description

SCOPE OF LEARNING:-

Study of Logic gates and verification of truth tables
Study of OR gate and to verify its truth table
Study of NOT gate and to verify its truth table
Study of NAND gate and to verify its truth table
Study of NOR gate and to verify its truth table
Study of XOR gate and to verify its truth table
Study of XNOR gate and to verify its truth table

TECHNICAL SPECIFICATIONS:-

DC Power Supply (±12V, ± 5V)
Digital Electronics Software
Input : +5V DC
Logic levels
+5V : HIGH (Logic 1)

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice
