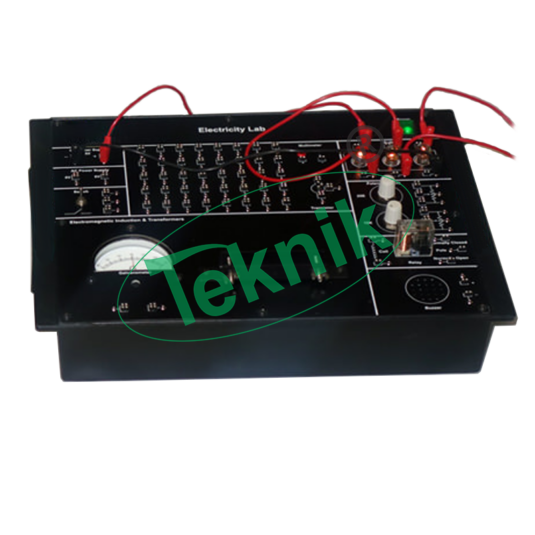

Description
SCOPE OF LEARNING:-
- Study of the Resistances individually as well as in series and in parallel connections
- Study of the Ohm’s Law mathematical relationship between three variable Voltage (V), Current (I) and Resistance (R)
- Study of the Kirchhoff’s Law for electrical circuits
- Study of the R-C circuit and L-C circuit and find out its behavior as resonance circuit
- Study of the characteristics of a semiconductor diode and transistor
- Study of the Lenz’s Law and effect of Eddy current
- Study of Ousted experiments
- Convert a Galvanometer into Voltmeter and Galvanometer into Ammeter
- Construct and study a step-down transformer and step up transformer
- Faraday’s Law of electromagnetic induction
- Phenomenon of mutual induction
TECHNICAL SPECIFICATIONS:-
- DC Power Supply : 5V, 200mA
- AC Power Supply : 6V, 1A
- Relay : 5V
- Galvanometer : 30 – 0 – 30
- Galvanometer Resistance : 80W
- Light Bulbs : 6V
- Potentiometers : 25W, 1W, 10kW, 1W
- Switch : 1 Pole, 2 Way Toggle type
- Core Types : E, I, U
- Fuse : 1A
- Power Supply : 230V ±10%, 50Hz
** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice
