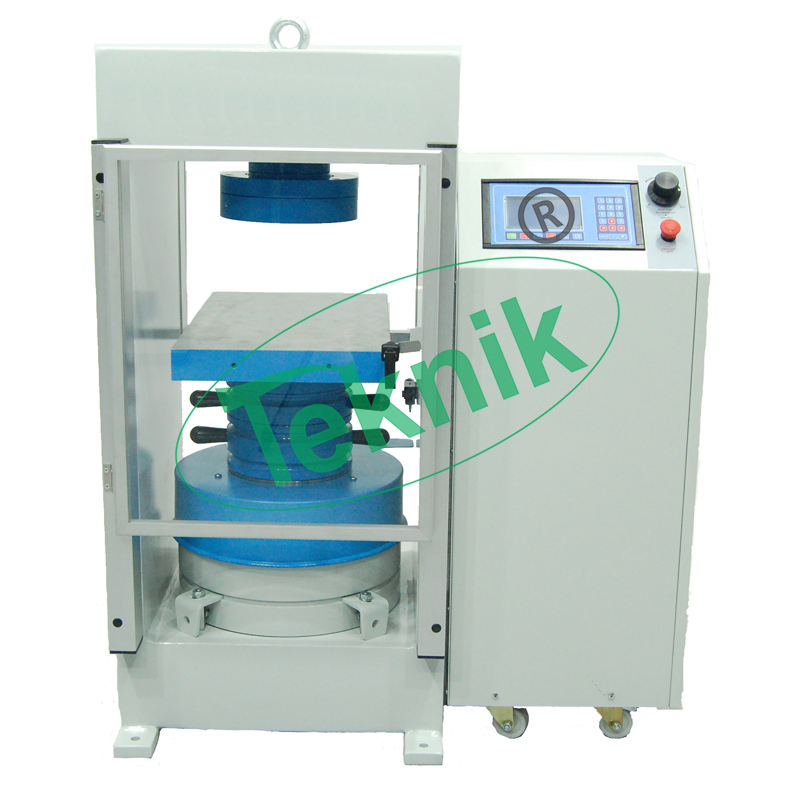

Fully Automatic Concrete Compression Testing Machine: MTCT-105

The automatic range of 3000 kN capacity compression testing machines has been designed to meet the need for reliable and consistent testing of concrete samples all lab test machines feature the complete automatic test cycle with a closed loop digital readout. Once the specimen parameters have been introduced, it is sufficient to press the start button to complete the test. Lab test compression machines consist of their main parts: frame, power pack and data acquisition control system. Each part has been designed to manufacture machines with a high degree of mechanical.

Data Acquisition and Control System:-

LCD graphics data acquisition and controls system is designed to control the machine and processing of data from load cells or pressure transducers installed on the compression machine frame. The easy to read LCD graphic display and touch-button data pad keys make the unit quick and straight forward to operate. All interactions with the measuring system are via the front control panel by using simple menu-driven procedures.

The contained in light alloy housing and its design satisfies the ergonomic requirements for various uses. The bc100 digital graphic display allows real time load vs time graph. At the end of the test cycle, the results can be stored in the large memory or downloaded to a PC in Lab test software format. Dedicated software package is available for further online data processing, database management and certificate printing.

Frame:-

The load frame is a welded steel fabrication carrying the ball-seated upper platen. Positively located on the loading ram which is protected from debris by a cover, the lower platen is marked for the centering of cube and cylinder specimens. The dimensions of the frame allow the testing of concrete cylinders up to 320 mm long x 160 mm diameter; 100, 150 mm cubes. All machines are supplied complete with 30 mm, 50mm and 90 mm distance pieces. To test samples shorter than 150 mm extra distance pieces should be ordered. All machines are supplied with flexi glass front and rear removable safety doors. All frames have a single acting up stroking ram with over travel protection to stop the motor when the maximum platen travel is reached.

FEATURES:-

• Max. pressure valve to avoid machine overloading
• Piston travel limit switch (Extra cost)
• Emergency stop button
• Four column high stiffness welded frame tested for stability.
• Heavy duty spherical seat in lubricating oil bath, allowing initial free alignment at the initial contact with the specimen and automatic jamming up to the end of test.
• High stability welded assembly
• 50 mm piston stroke with safety limit switch
• Platen hardness of min 55 HRC
• Distance pieces and safety door included
• Ball seating assembly and frame tested for stability
