VICAT NEEDLE APPARATUS

Vicat Needle Apparatus: MTCT-22

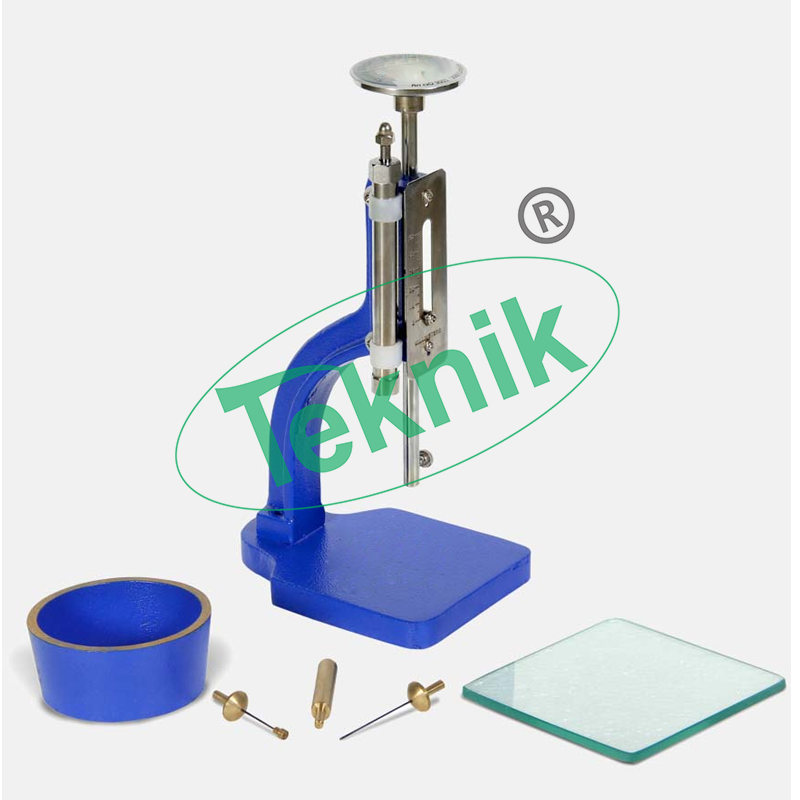

Vicat needle apparatus is used to find out the consistency, initial setting time and final setting time of the cement. In the normal consistency test we have to find out the amount of water to be added to the cement to form a cement paste of normal consistency. Vicat’s apparatus consists of an arrangement to hold the plunger of 10 mm diameter and two other needles which are made to freely fall into a mould filled with the cement paste and the amount of penetration of the needles of plunder can be noted using the vertical graduations from 0 mm to 50 mm. When the penetration is of about 42 to 45 mm or when the reading on the vertical graduation is about 5 mm to 7 mm that means cement is of normal consistency. Generally the water required to form a paste of normal consistency is 30%.

Features:-

Release pin indicator
Movable rod
Frame
Non-porous plate
Split ring
Needle
Plunger for standard consistency test
Enlarged view of needle
Air vent
Cap
Cylindrical mould
Sheet
Durable standards
Perfect construction
Excellent functioning

Category: Cement Testing Equipment

Description
Product Enquiry

Description

Technical Specification:-

High alumina
The apparatus consists of a metallic frame bearing a freely movable
A cap at top, one vicat mould and glass base plate and one set of needles one each initial needle, final needle and consistency plunger.
It comes with a dashpot which facilities gentle lowering of the needles
Super sulphated
Low heat
Masonry cement
Ordinary
Rapid hardening

Accessories:-

Needle
Measuring cylinder
Glass plate
Flat trowel
Stopwatch
Balance

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK” keeps the right to modify the content in the product without prior notice.
