Flow Table Motorized

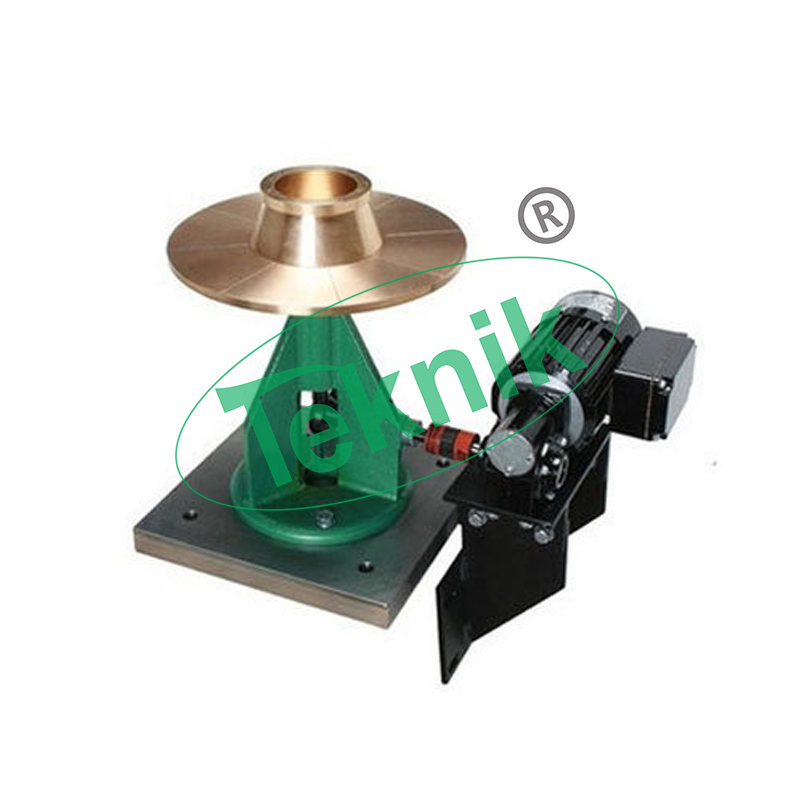

Flow Table Motorized: MTCT-07A

The flow table determining the flow of Portland cements concrete. Consists of flow table a top 76.2cms (30″) dia finely machined from solid brass/gunmetal casting. The stand is fabricated out of cast iron/mild steel and is of study construction. The ground and hardened steel cam is designed to drop the table by 12.5 mm. complete with flow mould with handles with one tamping rod 0-60cms long X 16 mm dia. Electrically operated to raise and drop the table top.

Features:-

Motorized Models
Automatic Drop Count
Complete with Brass Mould & Tamper

Category: Cement Testing Equipment

Description
Product Enquiry

Description

Technical Specification:-

Power W 180
Electrical 1 phase / 200 watts
Consists of a steel table top 76.2cm (30 inch.dia) finely machined
The integral cast ribs are designed for support and strength
The stand is fabricated out of cast iron and is study construction
Holes for mounting in foundations are drilled in the base plate
The ground and hardened steel cam is designed to fit and drop the table by 12.5mm
Electrically operated to raise and drop the table top approx 15 times in 15 second
Suitable for operation 230 volts 50 cycles A.C. supply

Accessories:-

Caliper, Mortar Diameter Check
Flow Molds
Air Content Measure
Mortar Flow Shield
Straight Edge
Pedestal Form

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK “keeps the right to modify the content in the product without prior notice.
