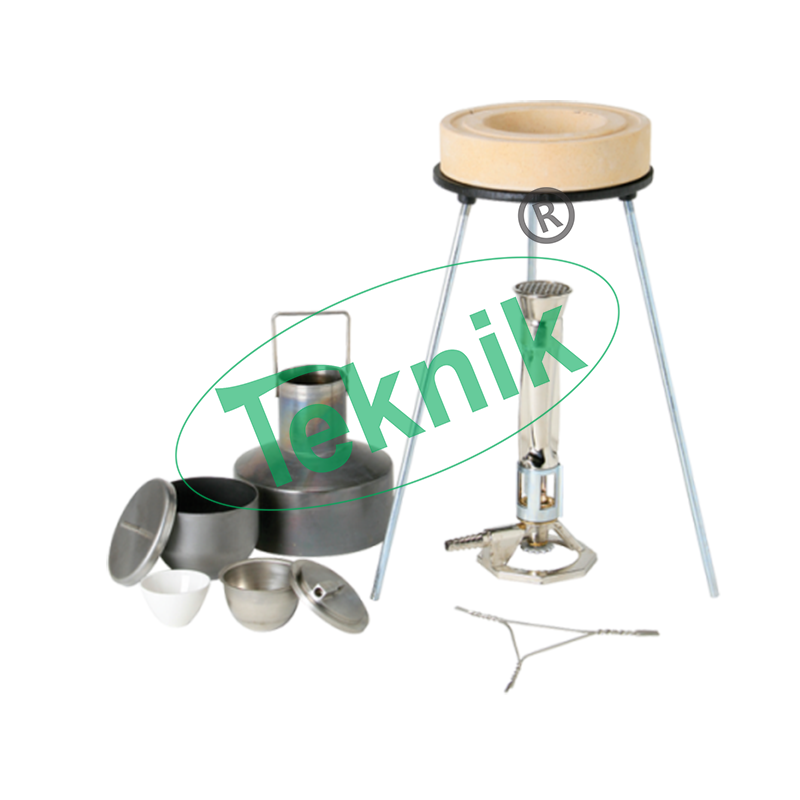

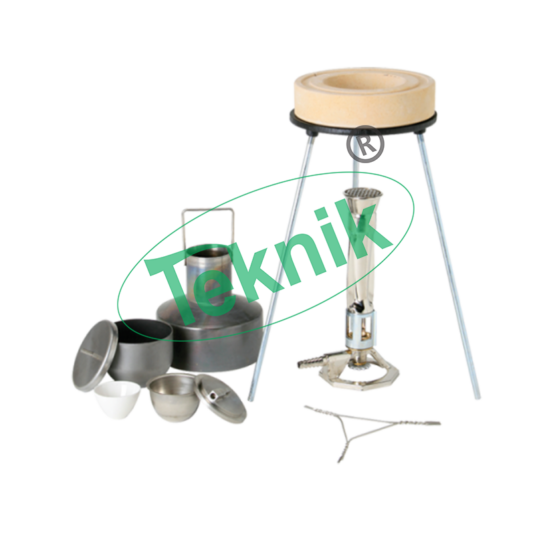

Conradson Carbon Residue Apparatus

Conradson Carbon Residue Apparatus: MTBA -08

The carbon residue is a measure of the carbonaceous material left in a fuel after all the volatile components have been vaporized in the absence of air. It may be expressed as Conrad son Carbon Residue (CCR) or Micro Carbon Residue (MCR). Numerically, the CCR value is the same as that of MCR. No real correlation between the Conrad son carbon results for paralysis liquids and the deposit formation on injector nozzles has been reported. Fuels with up to 12 wt% CCR the significance of the Conrad son carbon test results also depends on the type of engine in which the fuel is to be used. Pressure jet and steam-atomizing-type burners are not very sensitive to the value of the carbon residue of the fuel to be used Conrad son carbon is normally only specified for light diesel fuels. The paralysis liquids are of a different chemical nature than mineral-oil-based heavy diesel fuels. There is not yet adequate information on diesel engine performance data for paralysis liquids, and this test was therefore also selected for evaluation.

Features:-

Horizontal opening
Iron crumble capacity
Wire support bare nichrome gauge or equivalent
Meeker type burner
Dry sand
Insulator
Tripod with legs
Burner
Wire triangle
Refractory block insulator ring
Carbon reduce apparatus hood
Nickel carbon and cover
Skickmere crucible and cover
Rust resistance
Exact measurement
Precisely designed

Description

Technical Specification:-

It is used to determine the amount of Carbon deposit
When oil is evaporated under specified condition.
The apparatus consists of a solid metal bath having 6 walls to accommodate cocking bulbs with heating elements around the bath the temperature
Which may be controlled by a Pyrometer depending upon the type supplied, 6 cocking bulbs are supplied with apparatus.
Test Apparatus with gas burner – Elect heating with separate regulator control.
Elect. Heating with energy regulator control. -Conrad son Carbon Residue
These are useful in the manufacture of various lubricants.
The Carbon residue valves of crude Oil, residuum etc.

Accessories:-

Spare Cocking bulb
Spare heating element for above
Spare syringe
Stainless Steel Tong
