Centrifuge Extractor

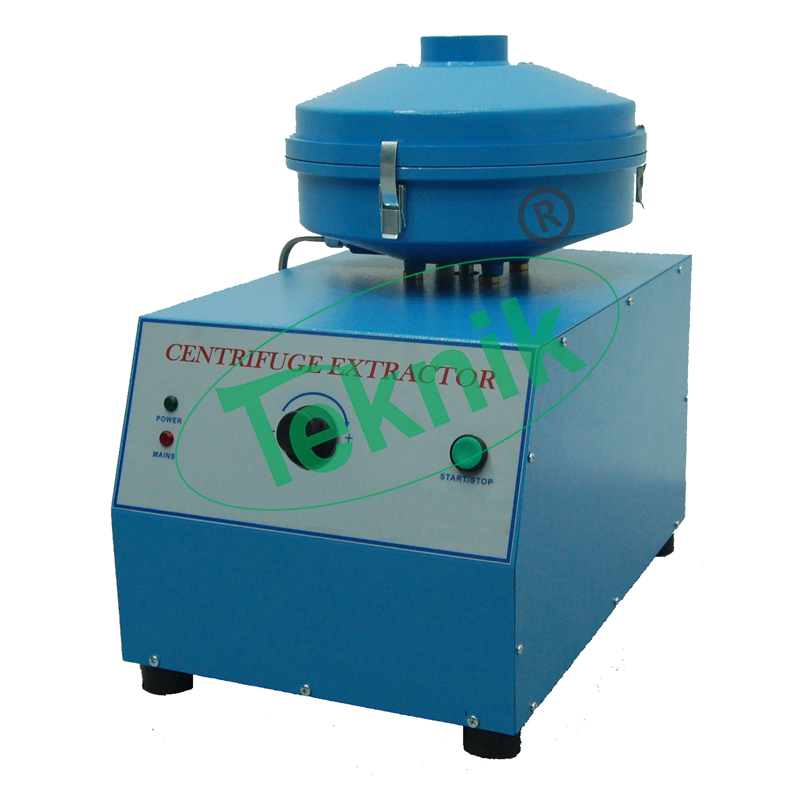

Centrifuge Extractor: MTBA -06

It may be defined as the Place the bowl containing the sample and solvent in the machine. Dry and weight the filter ring and fit it around the edge of the bowl. Clamp the cover over the bowl tightly in place and place the beaker under the drain to collect the extract Start the machine revolving slowly, gradually increasing speed to a maximum of 3600 rpm or until solvent ceases to flow from the drain. Allow the machine to stop, add 200 ml of benzene, and repeat the above procedure. Use sufficient 200 ml solvent and repeat the above procedure. Use sufficient 200 ml solvent additions (not less than three) so that the extract is clear and not darker than and light straw color when a portion is viewed in a separate container.

Features:-

Complete with 100 Filter Papers
1500g & 3000g size models available
3600 rpm
Electric Braking
High degree of Stability
Long life
Superior finish
Easy to operate

Category: Bitumen and Asphalt Testing Equipment

Description
Product Enquiry

Description

Technical Specification:-

Power: 230 V AC
Frequency: 50 Hz
Single Phase, A.C. supply
The control panel includes: Start/Stop button, speed control knob.
The cover is precisely machined and fitted with solvent resistant gasket to avoid leakages.
The rotating unit is suspended on the base by four calibrated springs, which assure a perfect stability all over the test.
Variable Speed Control 0 – 3600 rpm
Brake Control
Removable aluminum cover
Aluminum bowl

Accessories:-

Filter Paper
Benzene
Rotating bowl
Cover

** Note:-The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. “MICROTEKNIK “keeps the right to modify the content in the product without prior notice.
